VW & Audi 3.6 & 3.2 Engine Valve Cover PCV Valve Diaphragm

RKX VW & Audi 3.6 & 3.2 Engine Valve Cover PCV Valve Diaphragm


Genuine RKX PCV valve replacement diaphragm.

New version 4.0 has been refined to be the most durable PCV valve EVER!

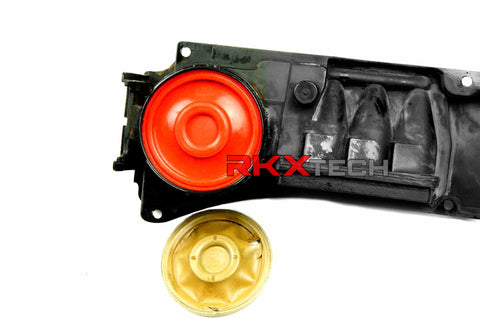

Designed to replace broken / ruptured PCV diaphragms on the 3.6L and 3.2L engine without having to replace the entire valve cover!

Diaphragm is made from high quality Viton and designed to be more durable.

Volkswagen & Audi do not sell this as a spare part!

They want you to replace the whole valve cover at a cost up to $450


Advantages of replacing only the PCV diaphragm:

- Cost savings

-Higher quality material to maximize lifespan

- Retain high quality OEM valve cover (cheap aftermarket valve covers are known to warp and cause oil leaks)

- Once valve cover is removed install is quick and easy.



Audi Q7 3.6L 2007 - 2013

Audi A3 3.2L 2004 - 2009

Audi TT 3.2L 2004 - 2009

Volkswagen R32L 3.2 2008

Volkswagen Passat 3.6L 2006 - 2018

Volkswagen CC 3.6L 2007 - 2016

Volkswagen Touareg 3.6L 2007 - 2016

Volkswagen EOS 3.2L 2007 - 2016

Volkswagen Atlas 3.6L 2018 - 2020

Porsche Cayenne 3.6L 2007 - 2018

DOES NOT FIT VW Jetta, GTI, R32 3.2L 2002-2004

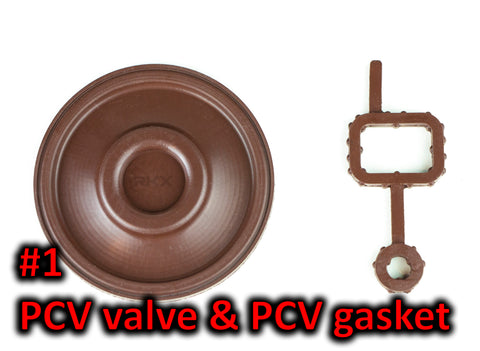

#1 - PCV valve and PCV assembly gasket
Fits all listed applications with 3.6L & 3.2L

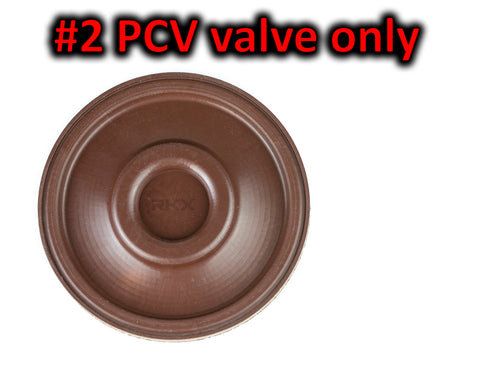

#2 - PCV valve only
Fits all listed applications with 3.6L & 3.2L

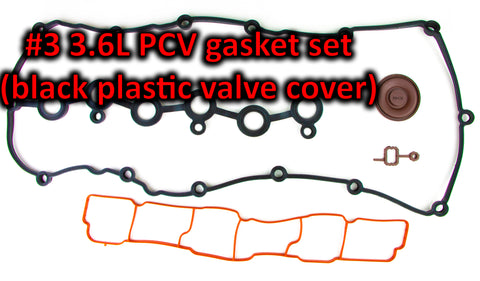

#3 - PCV valve, PCV assembly gasket, Valve cover gasket, and lower Intake manifold gasket.
Fits VW, Audi, & Porsche applications  listed with 3.6L engine. The 3.6L can be identified by its black colored plastic valve cover. Manifold gasket does not fit 2 piece manifold.

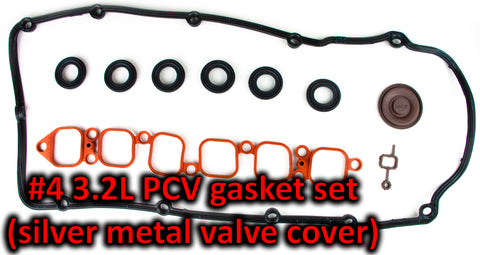

#4 - PCV valve, PCV assembly gasket, Valve cover gasket, Spark plug gaskets, and Intake manifold gasket.
Fits only applications listed with 3.2L engine. The 3.2L engine can be identified by its silver colored Aluminum valve cover.

#5 PCV valve, PCV assembly gasket, Valve cover gasket, and upper Intake manifold gasket
Fits only VW & Audi applications  listed with 3.6L engine WITH a 2 piece manifold. Most 2010 and newer 3.6L engines use the 2 piece manifold! (This application does not typically require removal of injectors)

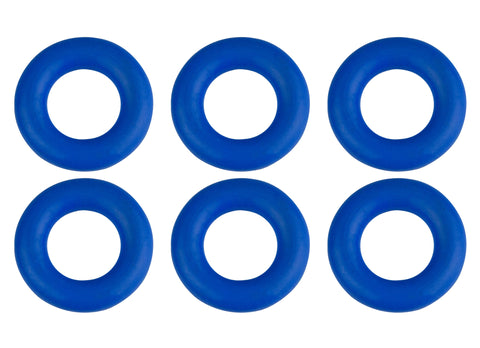

- By popular demand we now offer fuel injector O ring options for all kits. Please note that all applications other than the 3.2L engine With a silver metal valve cover use the same injector O rings.

- Our injector O rings are made from Fluorosilicone rubber. Special care must be taken when installing. The fit is very tight and the O rings will require lubrication to be installed without damage. The correct type of grease MUST be used as silicone or Aersol based lubricants can cause premature failure.


Not sure what kit you need? No problem use the contact us link at the bottom of the page and we will be happy to help you get the right kit!

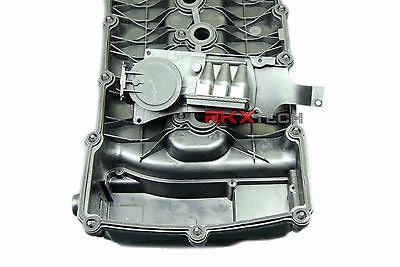

Listing is for PCV membrane only valve cover pictured is not included

Fits valve cover part number: 03H103429H, 03H103429D, 03H103429C, 022103475AF, 022103483E, 03H103483C, and many more!
