RKX VW & Audi 2.5L Vacuum Pump Reseal / Rebuild Kit

RKX 2.5L Liffetime Vacuum Pump Reseal Kit

Includes all needed gaskets to rebuild the 2.5L vacuum pump and stop it from leaking oil.
VW & Audi do not sell this kit as a spare part. They want you to replace the entire pump!

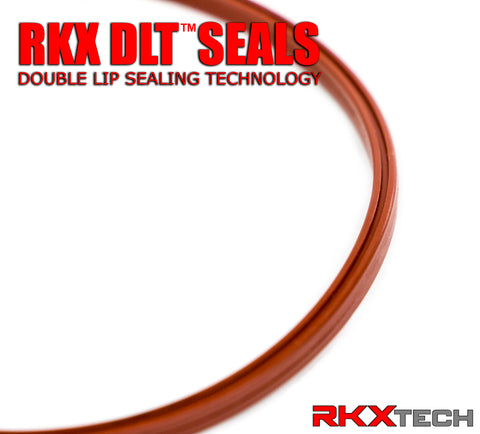

Our custom injection molded seals are made from RKX proprietary FKM fluorocarbon rubber. This seal has been specifically designed to hold up under the extreme conditions of your engine. The RKX™ 2.5l seal uses our most advanced vacuum pump seal to date featuring double lip technology (DLT™) for the ultimate seal!

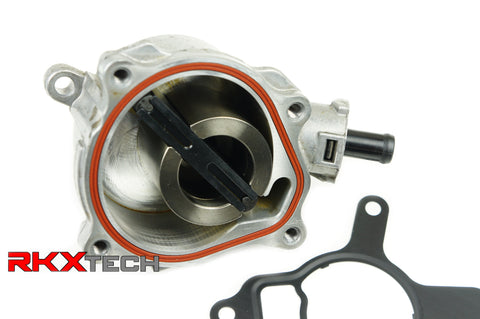

The RKX® 2.5L vacuum pump kit also features our improved rear pump gasket. The rear gasket is formed with a raised ridge that is designed to crush into place as the pump is tightened down. This combined with its soft graphite coating forms a reliable seal that is unmatched.

Resealing your pump is cost effective and easy! Our kits included everything needed to seal your pump and stop it from leaking oil. We do not include unnecessary extra parts such as bolts to help keep our kits the best possible value!

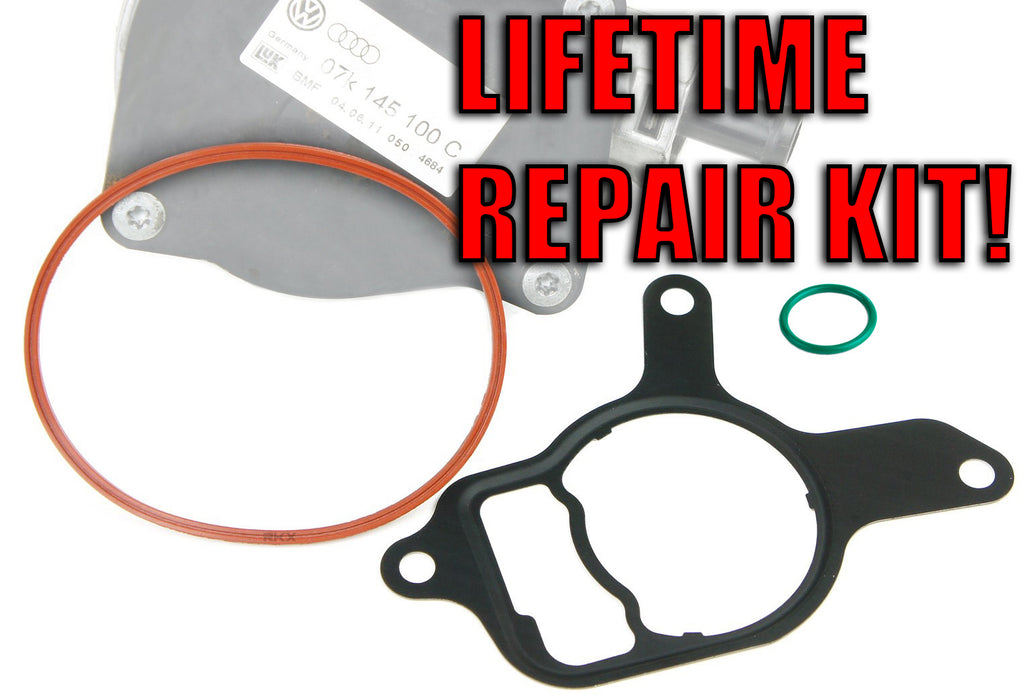

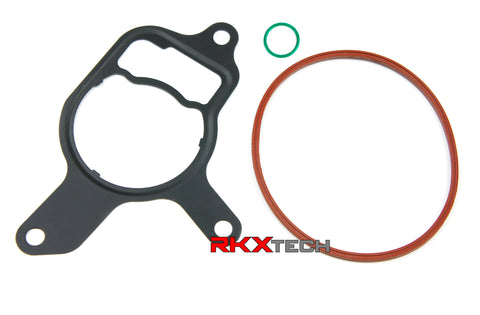

Includes:

Front vacuum pump DLT™ seal
Vacuum port seal
Graphite coated rear crush gasket

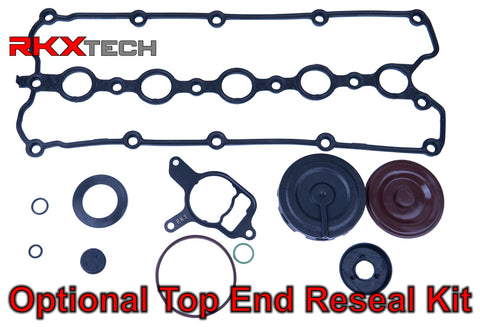

* Optional 2.5L top end reseal kit adds:
(Does not Fit TT RS)

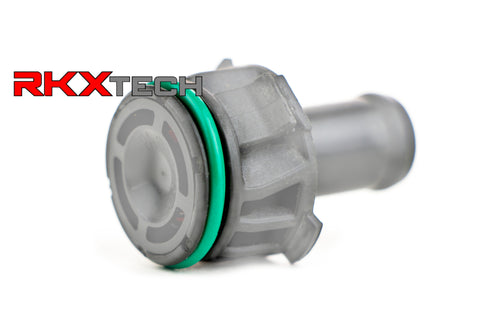

- PCV Valve Assembly
- Valve cover gasket
- Oil cap seal
- Camshaft bore cap
- Camshaft position sensor seal
- Camshaft adjuster solenoid seal

Applications:

Audi:

TT RS: 2012 - 2013

Volkswagen:

Beetle: 2006 - 2014

Jetta: 2005 - 2014

Passat: 2012 - 2014

Rabbit / Golf:  2006 - 2014

Engine Codes:

CBUA, CBTA, CEPA, CEPB, BPS, BPR BGP, CEPB, BGQ

Part number interchange info: 07K145215A, 07K 145 215A, 07K145100H, 07K 145 100H, 07K 145 100 H, pierburg, luk, 724807300, 07K145100B, 07K 145 100B, 07K 145 100 B, 07K145100G, 07K 145 100G, 07K 145 100 G, 07K 145 100C, 07K145100C, 07K 145 100 C, 07K145215, 07K 145 215
