RKX R8 / Gallardo / RS6 5.2L V10 Oil pump reseal kit

RKX 5.2L Scavenging oil pump reseal kit. The RKX kit includes all needed gaskets to remove your V10 oil pump and reseal it from leaking oil. Audi and Lamborghini do not sell any of the internal oil pump case seals. If you develop an oil leak they want you to replace the entire unit which can cost over $4,000 just for the part! This kit also incudes the oil pump drive shaft seals which are a very common leak point as well.

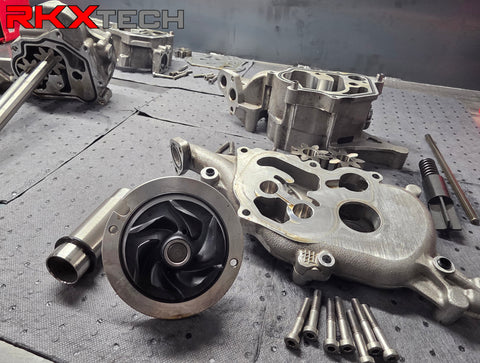

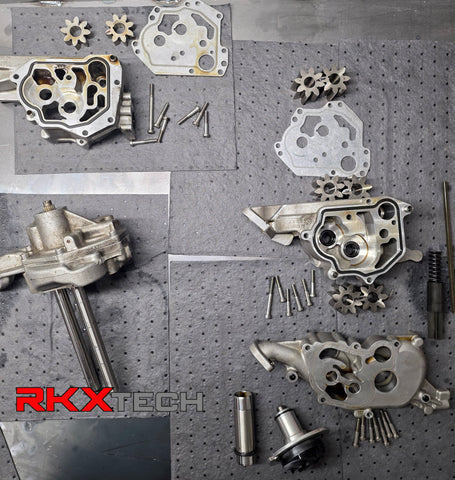

Our kit is designed to help make the repair process as easy as possible. It includes all needed gaskets to remove your pump from the vehicle, rebuilt it, and reinstall it. The optional oil pump strainers and coolant tube are highly recommended to replace at the same time, but as they are OEM parts they add significantly to the cost of the repair so we have made it optional to add them on.

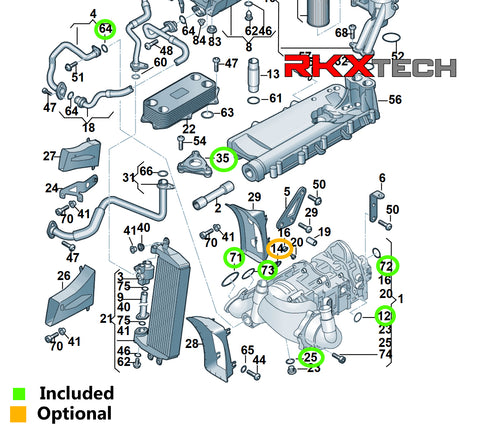

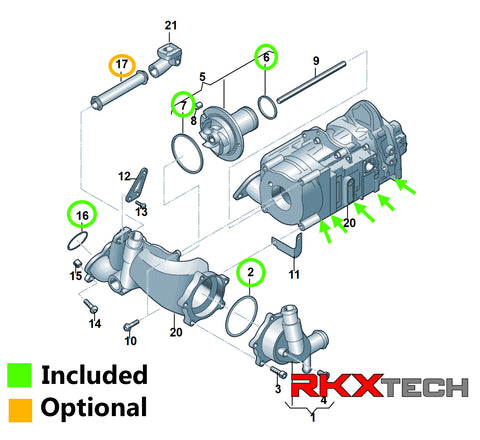

Option #1 Includes:

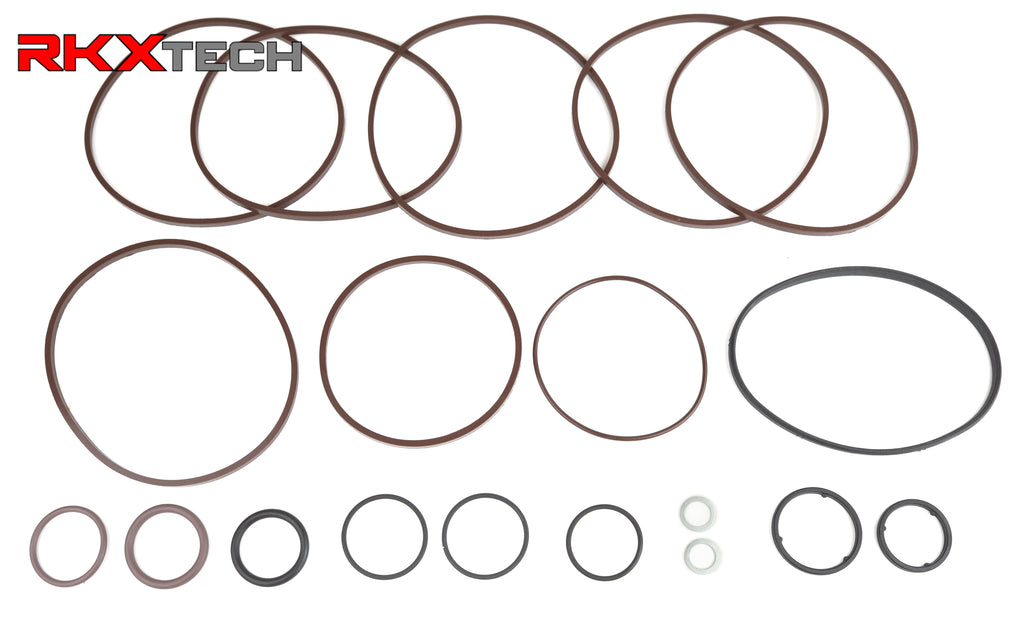

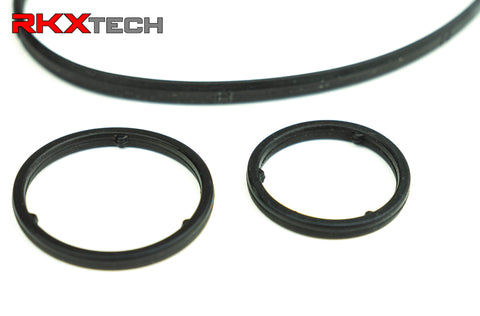

- 7 x Oil pump internal case seals
- Water pump seal - 07L121437
- Water pump inner seal - 07L115315
- Water pump housing to engine block seal - 07L121119B
- Thermostat housing seal - 079121119C
- 2x oil drain plug crush gaskets - N0138115
- 2 x Oil pipe seal - N90969401
- Oil pump shaft seal input seal - WHT003731
- Oil pump shaft seal engine side seal - 07L103707B
- Oil pump to engine block seal - 07L115446A
- Oil pipe seal - WHT003732

Option #2 includes all of above plus:
(Please allow 1-2 business days for processing when selecting option #2)

- 8 x Oil strainers - OEM - 07L103081
- Coolant pipe - OEM - 07L121237B

Fitment:

Audi:

5.2L
- R8: 2009 - 2024
- RS6: 2008 - 2010

Lamborghini:

5.2L
- Gallardo 2009 - 2013

OEM part number interchange: 07L-115-009-BB, 07L-115-009-AH, 07L-115-009-AL, 07L-115-009-AM, 07L-115-009-AN, 07L-115-009-AR, 07L115009BB, 07L115009AH, 07L115009AL, 07L115009AM, 07L115009AN, 07L115009AR
